WA2IAC Electronic TR Switch Project

See also:  Home   Hardware   Site Map

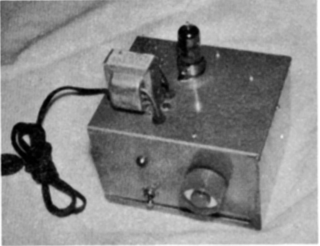

W3LYP TR Switch

Electronic TR Switches have been around for a while. They allow for full break-in CW by eliminating the need for a TR relay, which is unlikely to do 20+ WPM when running a kilowatt. Tubes are heavy duty, and unlikely to be affected by power so they're perfect for this application. Here is one design using a 6BZ7 that was an inspiration to my homebrew efforts.

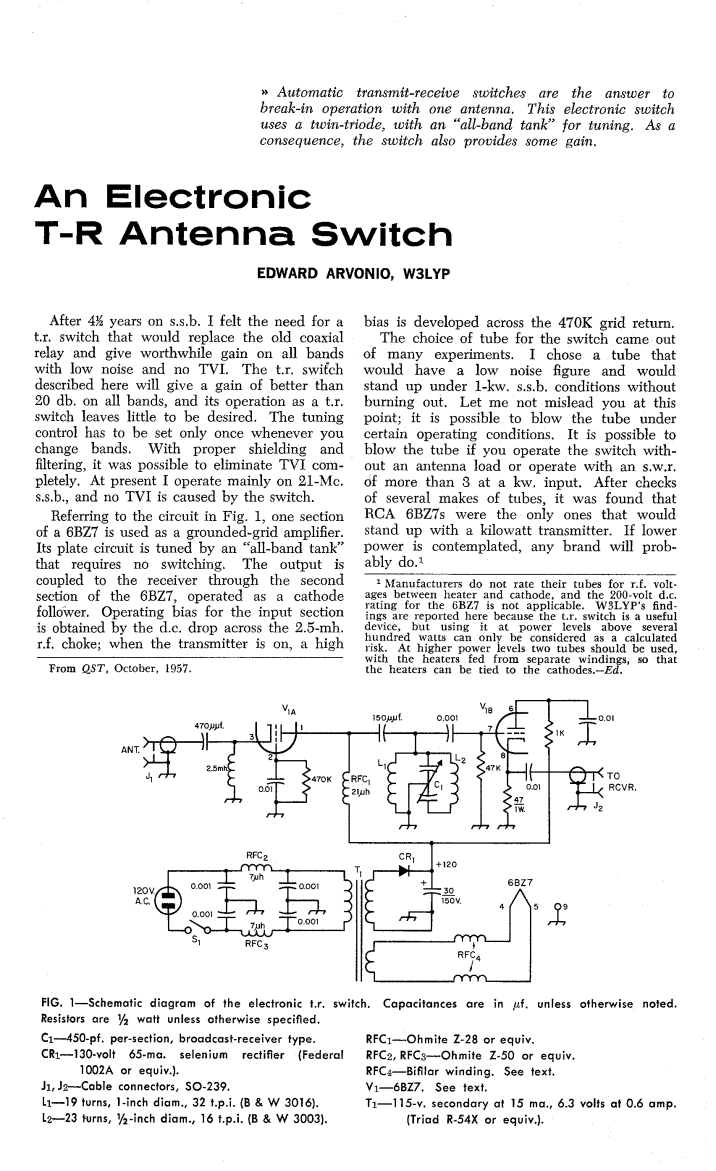

Page 1

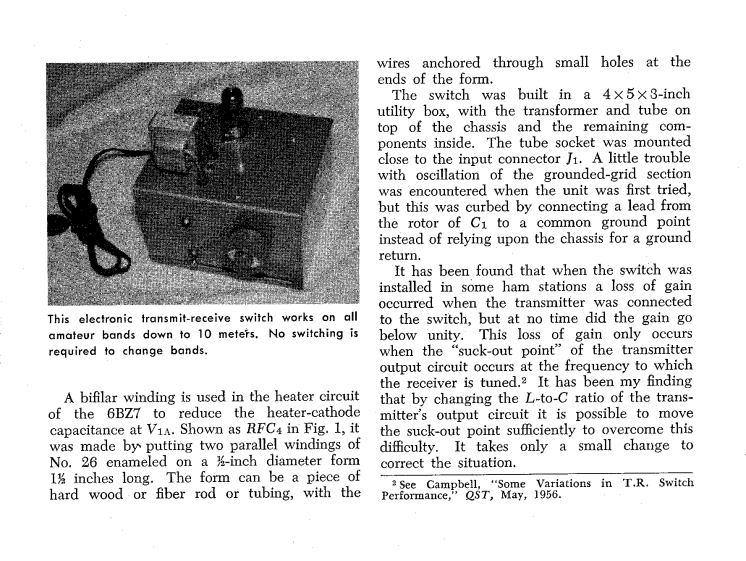

Page 2
